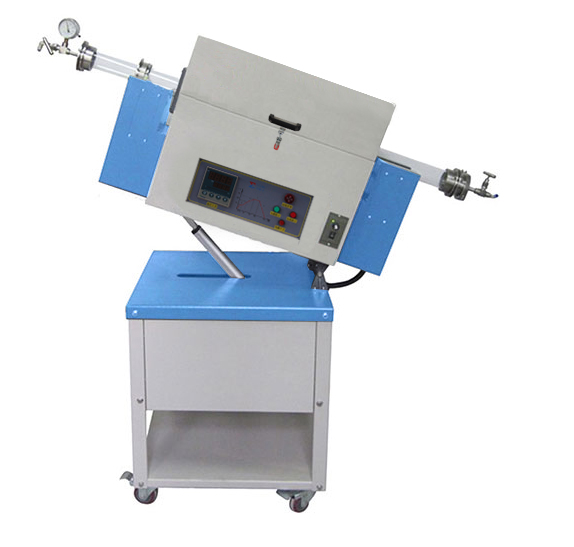

1200度可倾斜回转炉
- 名称：1200度可倾斜回转炉
- 类型：回转管式炉
- 规格：
- 温度：1200℃
咨询热线：132-3399-7675
产品详细
1200度可倾斜回转炉为小型可倾斜可旋转管式炉，小型可倾斜回转炉是一种高温烧结炉，工作温度可达1200℃。该设备采用可倾斜结构，可在倾斜的情况下进行装料和出料，炉管可旋转，管内壁设有石英挡片帮助粉料翻转，有助于提高物料烧结的均匀性。炉管两端配有真空气氛法兰，可在真空下或气氛保护下进行烧制.
1200度可倾斜回转炉可应用于电池正负极材料，无强酸碱性粉体材料，颗粒状物料。
以下是1200度可倾斜回转炉的特点：
The following are the characteristics of a 1200 degree tilting rotary furnace:
1、高温烧结：该设备可达到1200℃的高温，适用于高温烧结的应用。
High temperature sintering: This equipment can reach a high temperature of 1200 ℃,
suitable for the application of high temperature sintering.
2、可倾斜结构：可倾斜的结构方便装料和出料，提高了生产效率。
Tiltable structure: The tilting structure facilitates loading and discharging, improving production efficiency.
3、可旋转炉管：炉管可以旋转，且内壁设有石英挡片，有利于物料的均匀烧结。
otating furnace tube: The furnace tube can rotate and is equipped with quartz baffles on the inner wall,
which is conducive to uniform sintering of materials.
4、真空气氛法兰：设备配有真空气氛法兰，可在真空或气氛保护下进行烧制，保证烧制质量。
Vacuum atmosphere flange: The equipment is equipped with a vacuum atmosphere flange,
which can be fired under vacuum or atmosphere protection to ensure firing quality.
5、应用范围广：适用于电池正负极材料、无强酸碱性粉体材料、颗粒状物料等应用。
Wide application range: suitable for battery positive and negative electrode materials, non strong acid alkali powder materials, granular materials, and other applications.
1200度可倾斜回转炉具有高温、可倾斜、可旋转、真空气氛保护等特点，适用于多种领域的烧结应用。
the 1200 degree tilting rotary furnace has the characteristics of high temperature, tilting, rotatability, and vacuum atmosphere protection, making it suitable for sintering applications in various fields.
技术参数Technical Parameters：
|
电炉名称 Furnace Name |
1200度可倾斜回转炉 1200℃ tilting rotary furnace |
|
电炉型号 Furnace Model |
STRRTF120440-12 |
|
Working Temperature 工作温度 |
Max. Temperature: 1200℃( 1 hr) 设计温度：1200℃ (1小时) Continuous working temperature: ≤1100℃ 持续工作温度：≤1100℃ Heating Rate: ≤20℃/min 升温速率：≤20℃/分 |
|
Temperature Controller 控温方式 |
PID automatic control and auto-tune function. 模糊PID控制和自整定调节 30 programmable segments for precise thermal processing. 智能化30段可编程控制 Built-in protection for the over-heated and broken thermocouple. 超温和断偶报警功能 |
|
Length of heating zone 加热区长度 |
400mm |
|
Length of constant zone 恒温区长度 |
200mm |
|
Heating Elements 加热元件 |
Resistance wire, Fe-Cr-Al Alloy doped by Mo 电阻丝（掺钼铁铬铝合金） |
|
Temperature Accuracy 控温精度 |
± 1℃ |
|
Processing tube 炉管 |
Tube size: Shaped,Φ60*420 (two ends) + 100 * 360 (middle) mm 炉管尺寸：异形，Φ60*420（两端）+100*360（中间）mm Two tube blocks are included for blocking heat radiation generated from tube center, must be fully inserted into the furnace chamber before heating in correct position(quartz or ceramic are optional). 两个管堵阻挡管中心产生的热辐射，管堵必须在加热前塞进炉膛的正确位置（石英或氧化铝管堵可选） |
|
Inclinable angle 可倾斜角度 |
0-30 degree (adjustable) 0-30度(可调) |
|
Rotate rate 炉管转速 |
3-13 round/min (adjustable) 3-13转/分(可调) |
|
Net Weight 净重 |
92kg |
|
Main transmission power 主传动功率 |
0.04KW |
|
Linear actuator power 电动推杆功率 |
0.04KW |
|
Voltage 电压 |
Voltage rated: AC208-240V 50/60HZ 额定电压： AC208-240V 50/60HZ |
|
Power 输入电源 |
Power rated: 5KW (208-240V) 额定功率：5KW (208-240V) |
|
Dimensions 尺寸 |
Overall size: 1300*600*1250mm (L*W*H) 外形尺寸：1300*600*1250mm (长*宽*高) |
|
真空法兰 |
KF25 quick clamp flange 两端为KF25快速卡箍法兰 |
|
Vacuum Pressure 真空压力 |
1pa can be achieved by mechanical pump 机械泵可达1pa 10^-4 pa can be reached by molecular pump 分子泵可达10^-4pa |
|
Warranty 质保 |
One year limited warranty with lifetime support (Such consumable parts as tube, quartz block, and O-rings, etc. are NOT supported by the warranty) 一年质保终身支持（消耗品如炉管，石英管堵，O型圈等不在质保范围内） |
|
Warning 注意事项 |
Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. 在使用过程中炉膛表面可能出现细小裂纹。这是正常情况，裂纹可以用氧化铝涂层修复。 |
